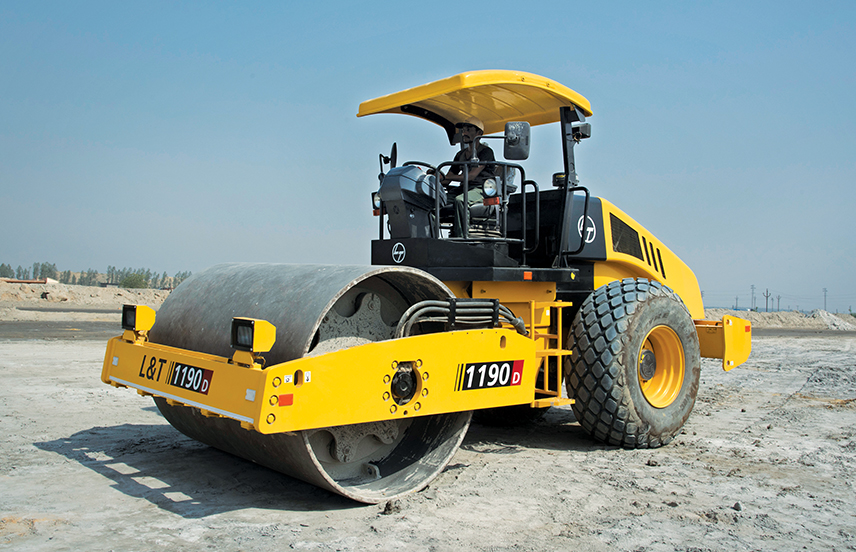

L&T 1190 Soil Compactor

Call us: 1800-833-9990, 1800-266-9990

Mail us: CMB@larsentoubro.com

Call us: 1800-833-9990, 1800-266-9990

Mail us: CMB@larsentoubro.com

Suitable Applications for

Road Making

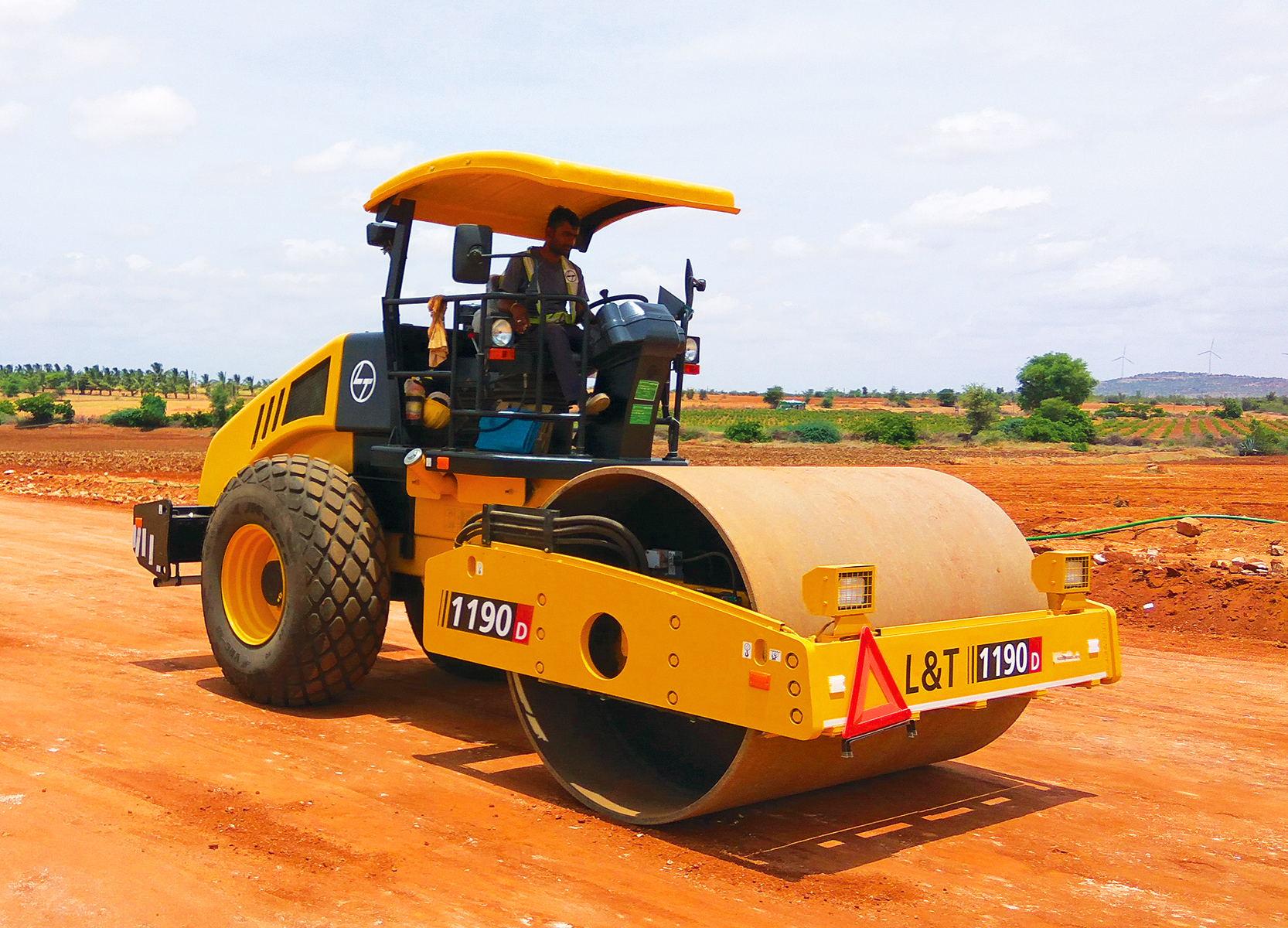

NHAI Road-Embankment

NH13 Chitradurga, Hospet Section

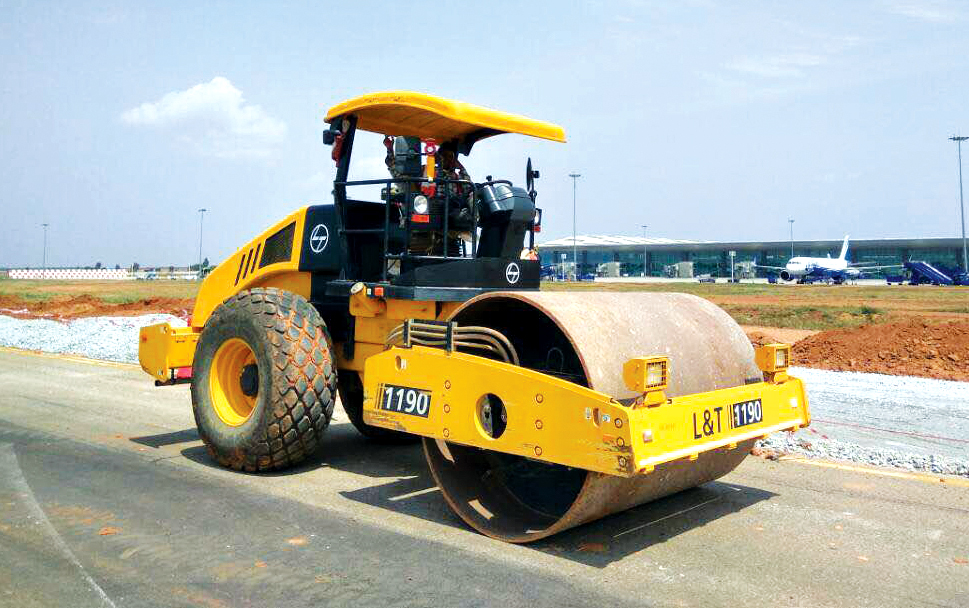

Runways

Bengaluru International Airport Site

Approach Road to Flyover

Compaction of 98% Procter achieved in 6-7 passes at Magadi Road, Bengaluru

SPECIFICATIONS

L&T 1190 Soil Compactor-Standard

L&T 1190 D Soil Compactor-Drum Drive Version

L&T 1190 Soil Compactor-Standard

Operating Weight	11 Tonnes
Engine	Mahindra MTorque 41025 – CEV-V
Frequency	34 Hz (High) 31 Hz (Low)
Amplitude	0.9 mm 1.8 mm
Drum Width	2100 mm
Gradebility	31%
Salient Features	High front drum weight shell thickness 30 mm Low turning radius improves manoeuvrability Enriched machine aesthetics Safety interlocks in brake and neutral system

L&T 1190 D Soil Compactor-Drum Drive Version

Operating Weight	11.2 Tonnes
Engine	Mahindra MTorque 41025 – CEV-V
Frequency	34 Hz (High) 31 Hz (Low)
Amplitude	0.9 mm 1.8 mm
Drum Width	2100 mm
Gradebility	40%
Optional	Padfoot Shell Compaction Meter ICS-Intelligent Compaction System DigiEye
Salient Features	High front drum weight shell thickness 32 mm Low turning radius improves manoeuvrability Enriched machine aesthetics Safety interlocks in brake and neutral system
