L&T e7 Sand Plant is an advanced ,fully automated & integrated system that manufactures premium quality sand from Fine Aggregate to use as a complete replacement for natural sand in concrete and plastering application which provides perfect combination of size, shape, gradation and purity of end product.

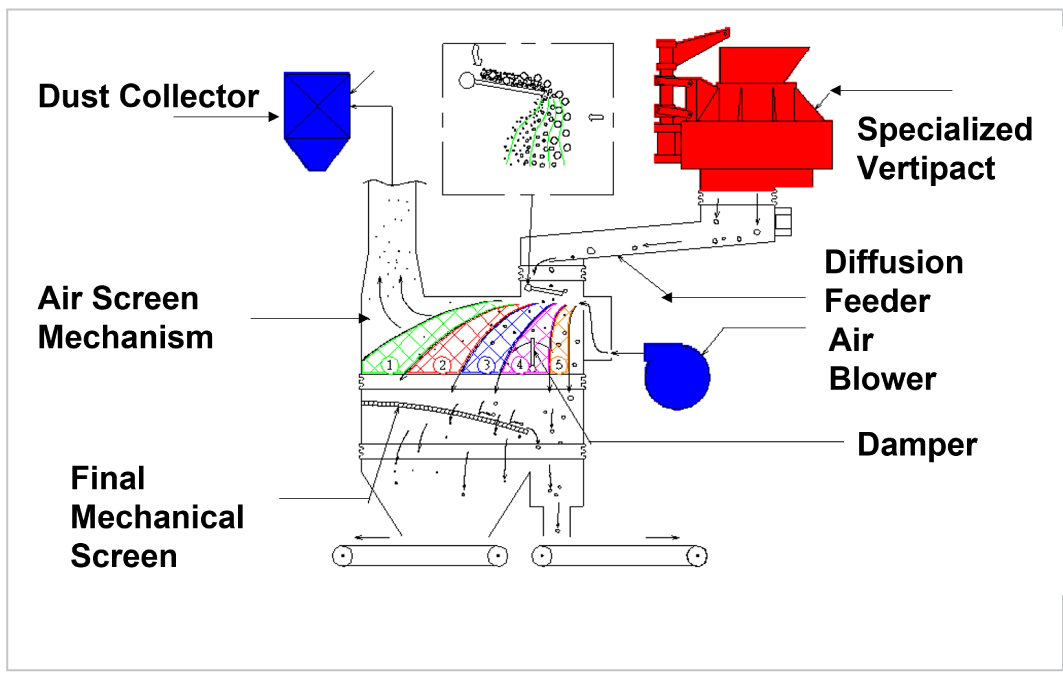

Hopper & Belt Feeder : Hopper along with belt feeder provided for controlled feed as per feedback from PLC
Specialized Vertipact : Special 5 port rotor with hammers for improved crushing performance in tertiary stage (2.5-1.2 mm size particle), It has favourable grain Shape, consistent gradation and low Operating Cost
Diffusion Feeder : The Primary size by size classification taken place before air screen
Air Blower: High capacity forced air blower provided to distribute the particles size wise in air classifier chamber
Air Screen Mechanism : The Air Screen fully automated system that selects and classifies crushed material into sand product &Â
oversize, rejecting excess fine particles to the dust collector.
Dust Collector : Micro sized fine is collected by suctioned air and stored in the filler tank. All the process is done by totally enclosed system and free from public pollution.

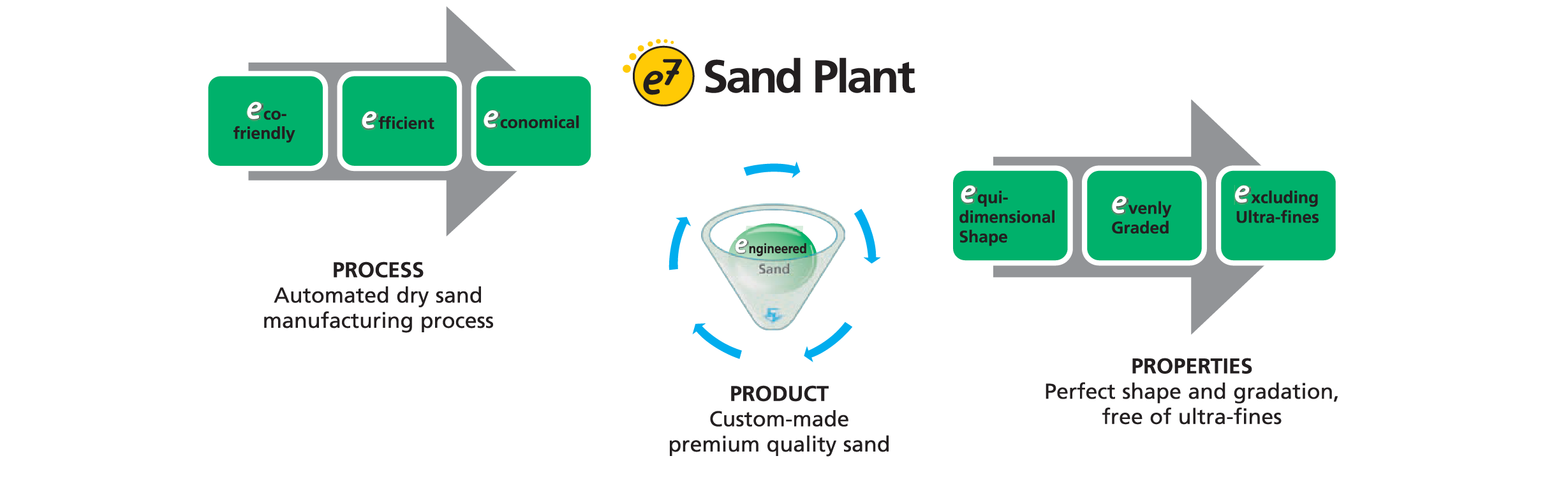

Advantages of e7 Sand Plant :
Â
Advantages of Engineered Sand:
